CHCS-2004

Maximize your potential with superior multi-color design capabilities

Features
• Specially designed 80 colors/needles that stitch on one 550 x 4 50mm frame, suitable for multi-color designs
• High accuracy ball screw and servo motor closed-loop control color change system
• Suitable for flat embroidery
• Maximum embroidery area: 550 x 450 mm, or 21.7 x 17.7 in
• Intuitive high definition true color 10.4" LCD touch screen
• Smaller sewing arm greatly improves the performance of embroidery on small items
• Heavy duty steel stand with wheels to ensure stability and mobi lity
• Maximum speed: 1000 spm
• Large memory capacity: 50 million stitches or 200 designs
• Servo motor for main shaft
• Step motor for X & Y axis driving to ensure low noise and less vibration
• Newly-developed wheel + spring intelligent thread break detecti on
• Emergency stop button
• Automatic thread trimmer
• Recessed USB port to protect USB flash drive
• Machine reads multiple design formats, such as DST, DSB and more
• Automatic memory retention
• Universal power supply 110V/60Hz and 220V/50Hz adaptable
• Environmentally friendly packaging
• Supports more than 6 different languages

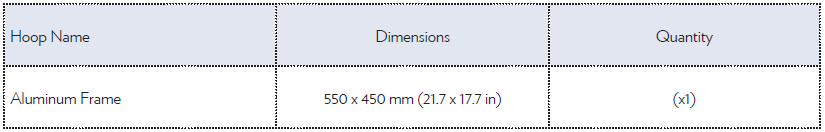

Specifications
