Product

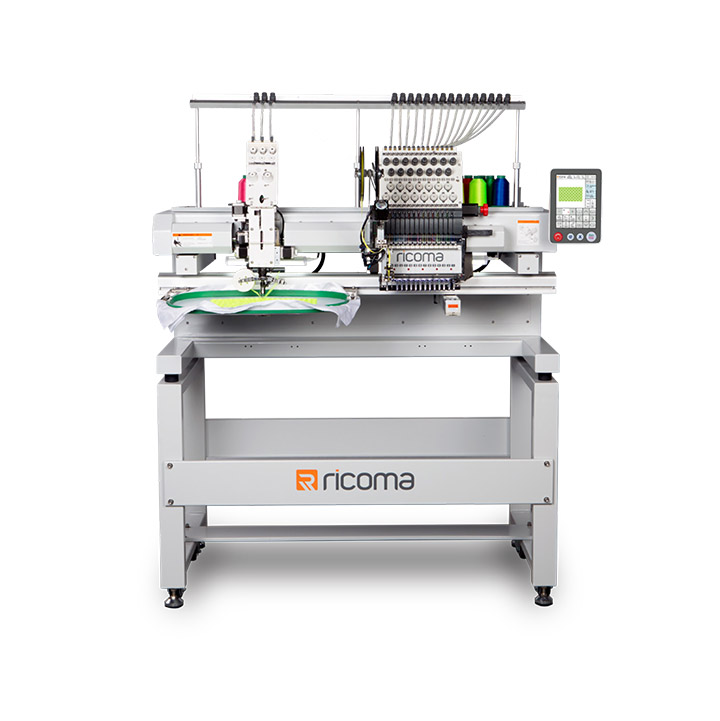

MMT-1501

Commercial Embroidery Machines

Specifications
  • Total Heads:

    2

  • Net Weight:

    190 kgs (420 lbs)

  • Embroidery Area:

    500 x 360 mm (20 x 14 in)

  • Head Interval:

    605 mm (24 in)

  • Voltage/Power Consumption:

    90-240 v / 0.3 kw

  • Max Speed:

    1000 / 850 spm

  • Cord Size:

    < 4 mm (< .15 in)

  • Tape Size:

    3 - 20 mm (.12 - .8 in)

  • Winding Wheel Diameter:

    70 mm (2.75 in)

Features

• Suitable for embroidery on flats, caps, finished garments and more!
• Perfect for established or home businesses
• High Definition True Color 8” LCD Touch Screen
• Maximum embroidery area: 500 x 360 mm, or 20 x 14 in for 1,
2 and 3 head machines; 400 x 360 mm, or 16 x 14 in for 4 head machine
• Heavy duty steel stand with wheels to ensure both stability and mobility
• Thread break detection
• Maximum speed: 1200 SPM (for 1-head) / 1000 SPM (for 2-4 head models)
• Large memory capacity: 20 million stitches or 200 designs
• External 100° button and trimming button
• Automatic thread trimmer
• Machine reads multiple design format such as DST, DSB and more
• 270° wide angle cap system for 1-head, 2-head and 3-head;
215°cap system for 4-head machine
• Environmentally friendly packaging
• Networkable and Wi-Fi capable
• One-step tracing button on home screen
• Servo motor 150W – lowest power consumption in the industry!
• Built-in universal power supply, 110V/60Hz and 200V/50Hz selfadaptable worldwide
• DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
• Automatic memory retention
• Easily add appliqué, sequin, boring or cording
• Built-in button from 172° to 196° under manual color change mode, a great help for machine maintenance
• Adjustable control panel positioning for better visibility and comfort
• Recessed USB port to protect USB flash drive
• Compatible with optional laser tracing device
• Emergency stop button
• Multiple hoop sizes for a variety of embroidery needs
• Multiple languages: English, Chinese, Spanish, Portuguese,
Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
• Wide overhead arm system for easy embroidery on bulky items
• Double LED lights for a wider field of view
• Front LED lamp provides better visibility and protection for eyes against strong light during threading
• One-piece rack for more stability (for 3-4 head models)
• Conveniently placed power on/off switch on top of machine
• Reinforced upper thread clamp to ensure stable trimming
• Smaller sewing arm greatly improves the performance of cap embroidery and embroidery on small items
• Optional stepper motor closed-loop configuration allows the embroidery to appear more three-dimensional
• 2-4 heads allows for mass production
• High torque main motor (for 3-4 head models)

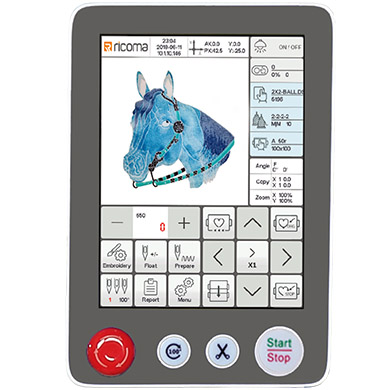

Display
+8
• Easy to operate, user-friendly interface
• New ergonomic touch screen allows easy and comfortable operation by right hand thumb
• Preset hoop parameters, which are designed to avoid hitting hoop frames
• Automatic color change
• Optional camera positioning device for single head machines
• Built-in factory mode, standardizing outgoing quality control process
• Built-in 172° and 196° keys for easy machine maintenance
• Frame offset and frame outlining available for easy appliqué embroidery
• One-step tracing button on home screen
• 3D design view for better visibility
• Machine parameters can be exported and imported for easy maintenance
• New needle path key optimizes embroidery production
• Built-in screenshots function
• Built-in file management system
• Optional laser trace device available
• Supports more than 13 different languages
• Large memory capacity: 20 million stitches or 200 designs
• USB file transfer and ethernet via software on PC
• Machine reads multiple design formats such as DST and DSB
• Powerful parameter adjustment system. Parameters can be adjusted
Hoops and cap attachment
CAP RING
x2
HOOP STATION
x1
CAP DRIVER
x1
Optional accessories

SEQUIN DEVICE

DOUBLE TWIN SEQUIN DEVICE

BEAD DEVICE

ROBOT FRAME

BORING DEVICE

CORDING DEVICE

Highlights

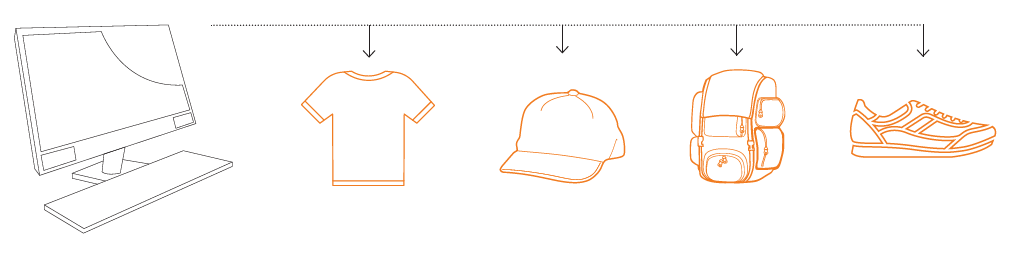

Network Technology

FLEXIBLE PRODUCTION SYSTEM

Using advanced network technology, users can link together as many Ricoma MT Series as desired to an extremely
flexible production system. Embroider the same design on all of your machines at the same time or embroider different designs
on individual machines simultaneously.

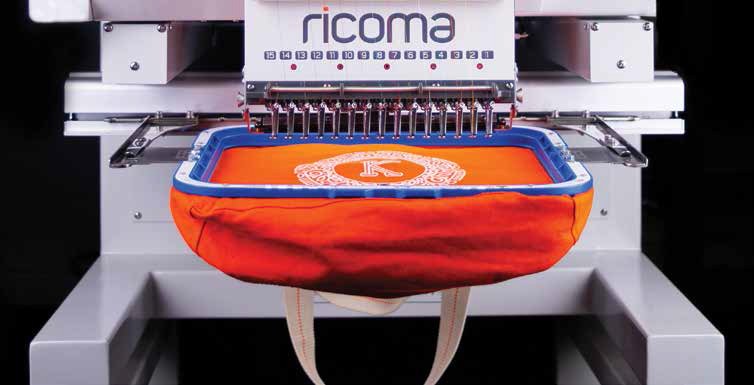

Wide overhead arm system

PERFECT FOR EMBROIDERY ON BULKY ITEMS

The MT Series sports a large working area suitable for bulky items such as bags, totes, towels and drapery. Designed with a
wide overhead arm system, the machine allows deeper clearance beneath the hoop to simplify embroidery on bulky items.
