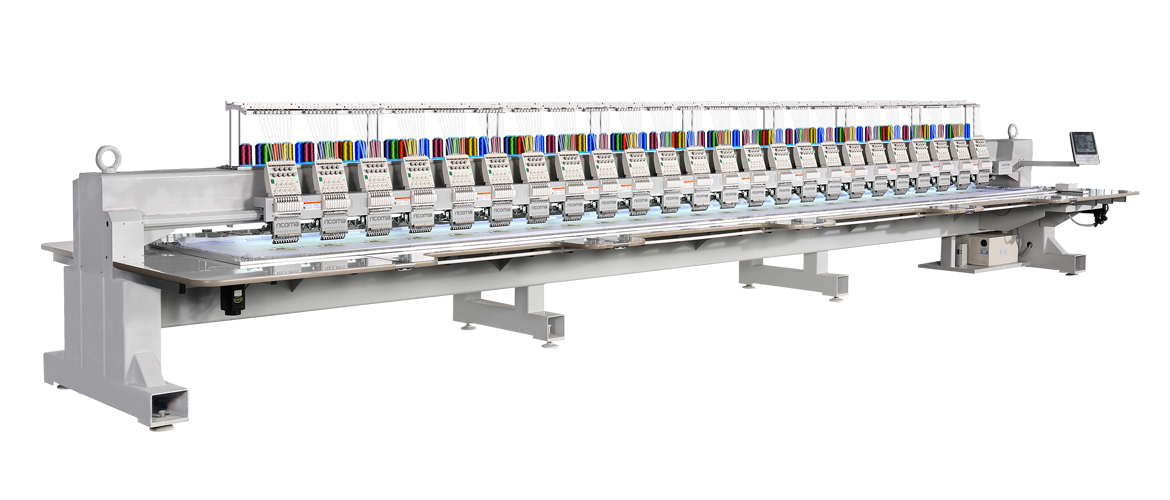

FHP SERIES

Available in up to 30 heads, this high-speed flatbed machine is perfect for scaling production.

Features


• Servo motor for main axis movement
• Servo motors for X and Y axis movements
• Intelligent thread break detection
• Double cam and double driver system
• Trimming with stepping motor
• AC motor for color change
• Motor-controlled jump stitch
• Upper thread holding system
• Integrated AC motor hooking system
• Heavy duty linear guide rail for X and Y axis drives
• Reinforced frame guide rail
• Heavy duty frame bearing

• No-contact inductive lever switch
• Thread break detection
• Automatic and manual color change
• Design display and preview
• Forward and rewind designs at high and low speeds
• Automatic trimming
• Rotate, resize, edit and multiply designs
• Edit design density and compensation directly on screen
• Design tracing helps ensure your needle does not hit the hoop
• Return to the start point or end point
• Multiple languages available
• Preset hoops set hoop boundaries for perfect centering

Specifications
Model Needles Heads Head interval Max speed EMB area (mm) Machine dimensions (mm)
mm SPM X Y A B C D
length max
width
height
to table
length
FHP-0920-T275-X600Y750 9 20 275 1000 600 680 7245 1880 1400 1650
FHP-0920-T300-X600Y750 9 20 300 1000 600 680 7720 1880 1400 1650
FHP-0920-T330-X600Y750 9 20 330 1000 600 750 8290 2020 1450 1700
FHP-0924-T275-X600Y750 9 24 275 1000 600 680 8345 1880 1450 1700
FHP-0924-T300-X600Y750 9 24 300 1000 600 680 8920 1880 1450 1700
FHP-0924-T330-X600Y750 9 24 330 1000 600 750 9710 2020 1450 1700
FHP-0930-T275-X600Y750 9 30 275 1000 600 680 10095 1880 1500 1700
FHP-0930-T300-X600Y750 9 30 300 1000 600 680 10820 1880 1500 1700
FHP-0930-T330-X600Y750 9 30 330 1000 600 750 11690 2020 1500 1700
Optional accessories

Sequin device

Cording device

Boring and chenille device
