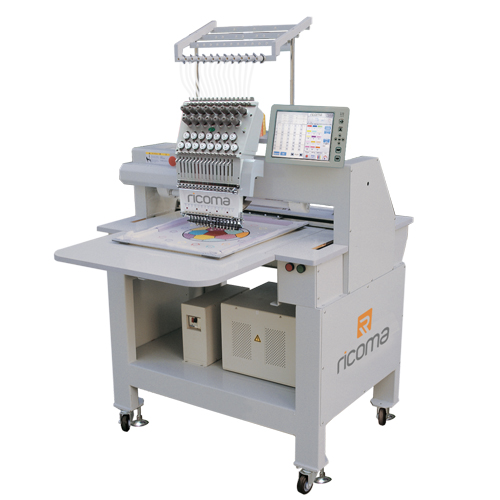

Embroidery machine


Available in up to eight heads, the CHT Series is ideal for businesses of all sizes. CHT models are perfect for scaling production on all types of finished garments including caps, flats, bags and plenty more.

  • Models:

    CHT-1201 / CHT-1501 / CHT-1202 / CHT-1502 / CHT-1204
    CHT-1504 / CHT-1206 / CHT-1506 / CHT-1208 / CHT-1508

  • Needles:


  • Heads:


  • Net weight: :

    290 kgs / 400 kgs / 600 kgs / 750 kgs / 950 kgs

  • Gross weight::

    340 kgs / 450 kgs / 680 kgs / 850 kgs / 1100 kgs

  • Size:

    400 mm (15.75 in)

  • EMB. area:

    400 x 450 mm (16 x 18 in)


• Suitable for embroidery on flats, caps, fnished garments
and more
• Perfect for established and growing embroidery businesses
• 10.4-inch HD LCD touch-screen panel
• Maximum embroidery area: 400 mm x 450 mm [16” x 18”]
• Optional wide model with embroidery area of 500 mm x
450 mm [20” x 18”]
• Newly developed small sewing arm for high-quality
embroidery on caps and small items
• Heavy duty steel stand with wheels to ensure stability and
• Maximum speed: 1,000 stitches per minute
• Memory capacity: 50 million stitches or 200 designs
• Machine reads multiple design formats, such as DST, DSB
and more
• 270° wide angle cap system

• Servo motor 150 W – lowest power consumption in the
• DC36V micro-step motor for X & Y axis driving to ensure low
noise and less vibration
• Automatic memory retention
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB flash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery needs
• Built-in universal power supply 110V/60Hz and 200V/50Hz
(self-adaptable worldwide)
• Environmentally friendly packaging
• USB input

Preset hoops
One-step appliqué
Easy color ion
On-board lettering
One-step tracing
Easy design input

• User-friendly interface
• Easy to operate
• New ergonomic touch screen allows for easy
and comfortable operation
• Preset hoop parameters designed to avoid
hitting hoops
• Multi-angle, rotatable and adjustable control
panel bracket allows for better visibility
• Pre-sew design trace capable
• Automatic color change

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
• Frame offset and frame outlining available for
easy appliqué embroidery
• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more

Hoops and cap attachment
Cap ring
Hoop station
Cap driver
90 mm round (9 cm, 3.5”)
120 mm round (12 cm, 4.7”)
150 mm round (15 cm, 5.9”)
200 mm round (20 cm, 9”)
290 mm square (29 cm, 12”)
Optional accessories

Sequin device

Boring device

Cording device

8-in-1 device

Robot frame

Belt hoop

Mighty hoop

Camera positioning device

Laser device


• 10 hoops per head (2 of each size, 5 sizes total) + sash frame
• The CHT Series is ideal for embroidery on caps, bags, denim, finished garments and plenty more.
• Each machine includes a sash frame and a variety of hoop sizes for embroidery on small, medium and large items.

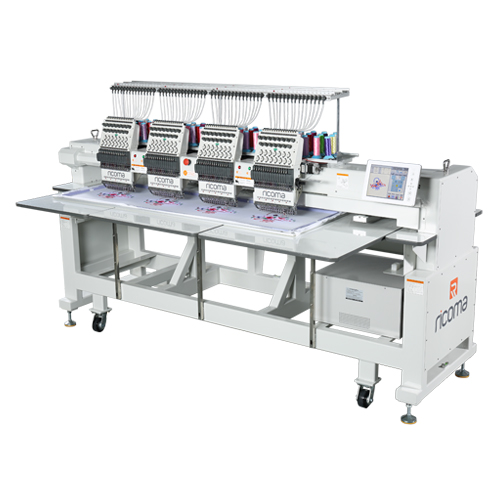

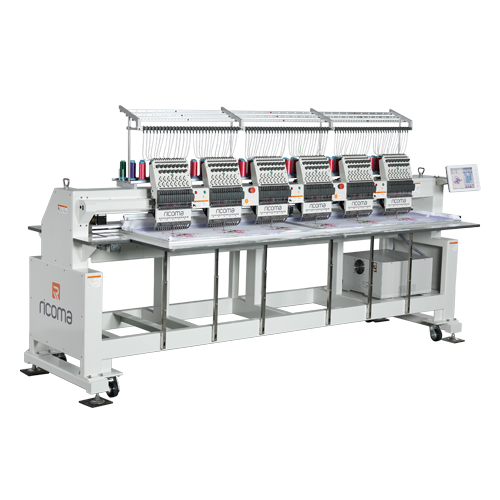

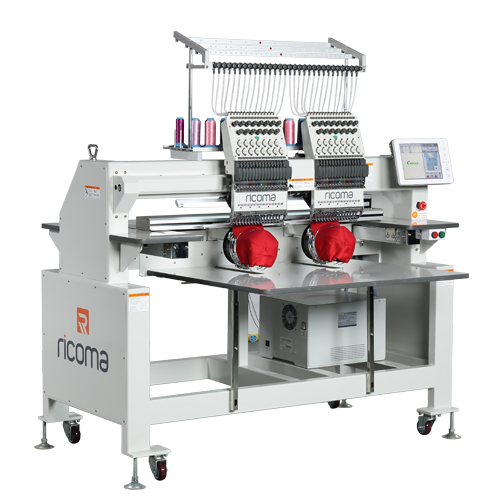

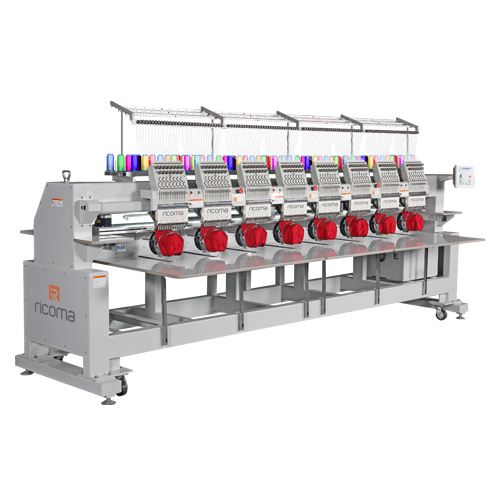

• Available in up to 8 heads
• Startups can ramp up their businesses with the CHT two-head and four-head, while established businesses can scale their   production with the CHT six-head and eight-head.
