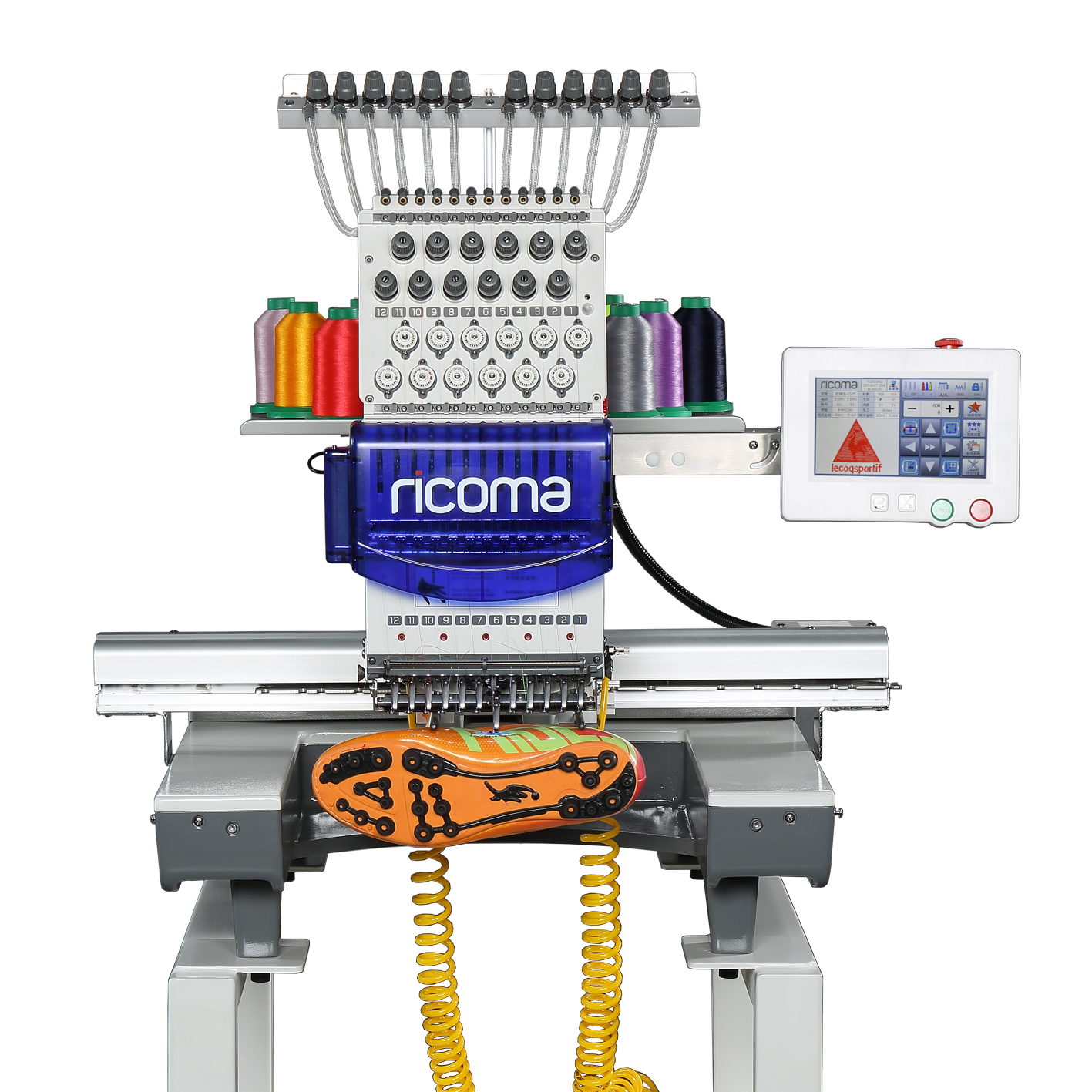

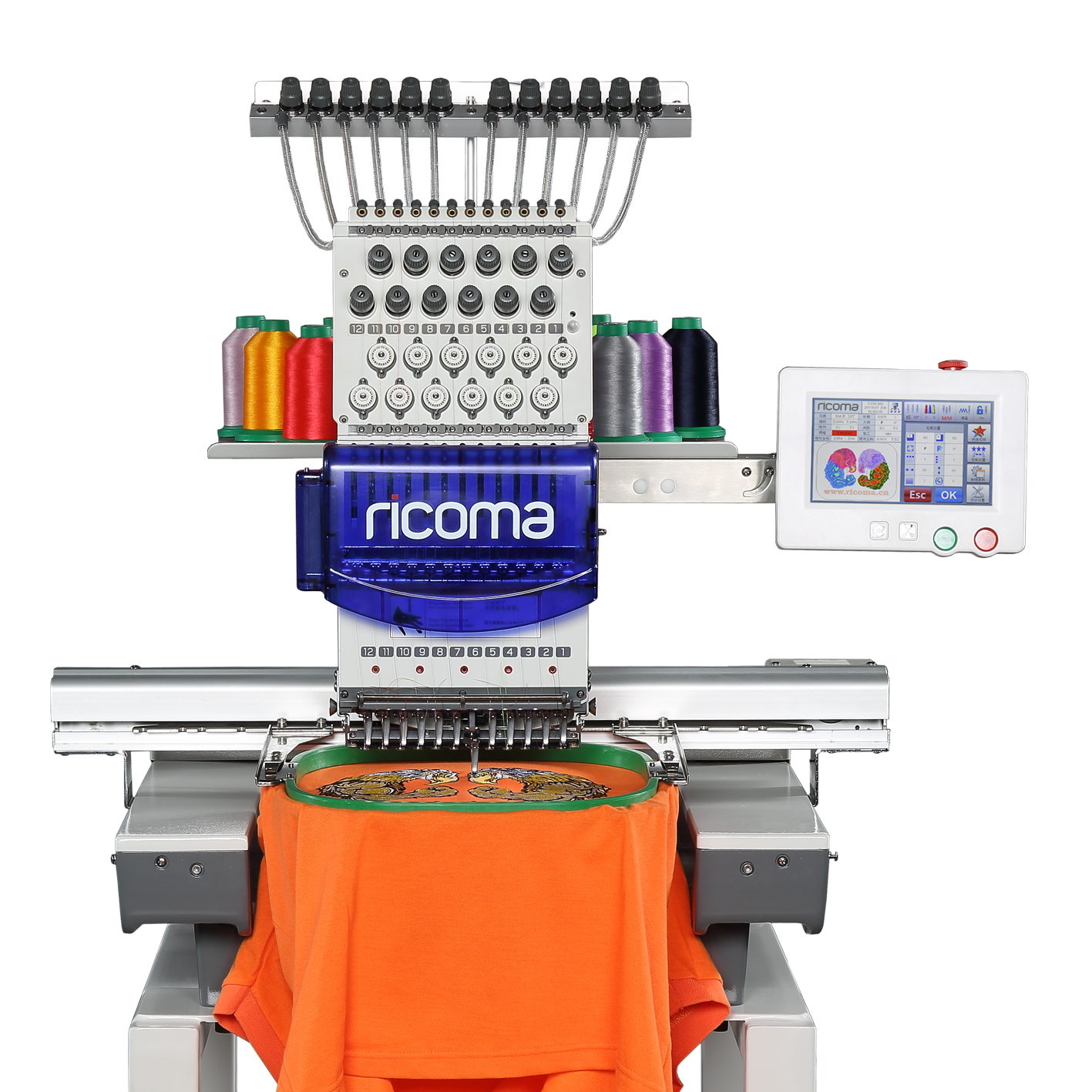

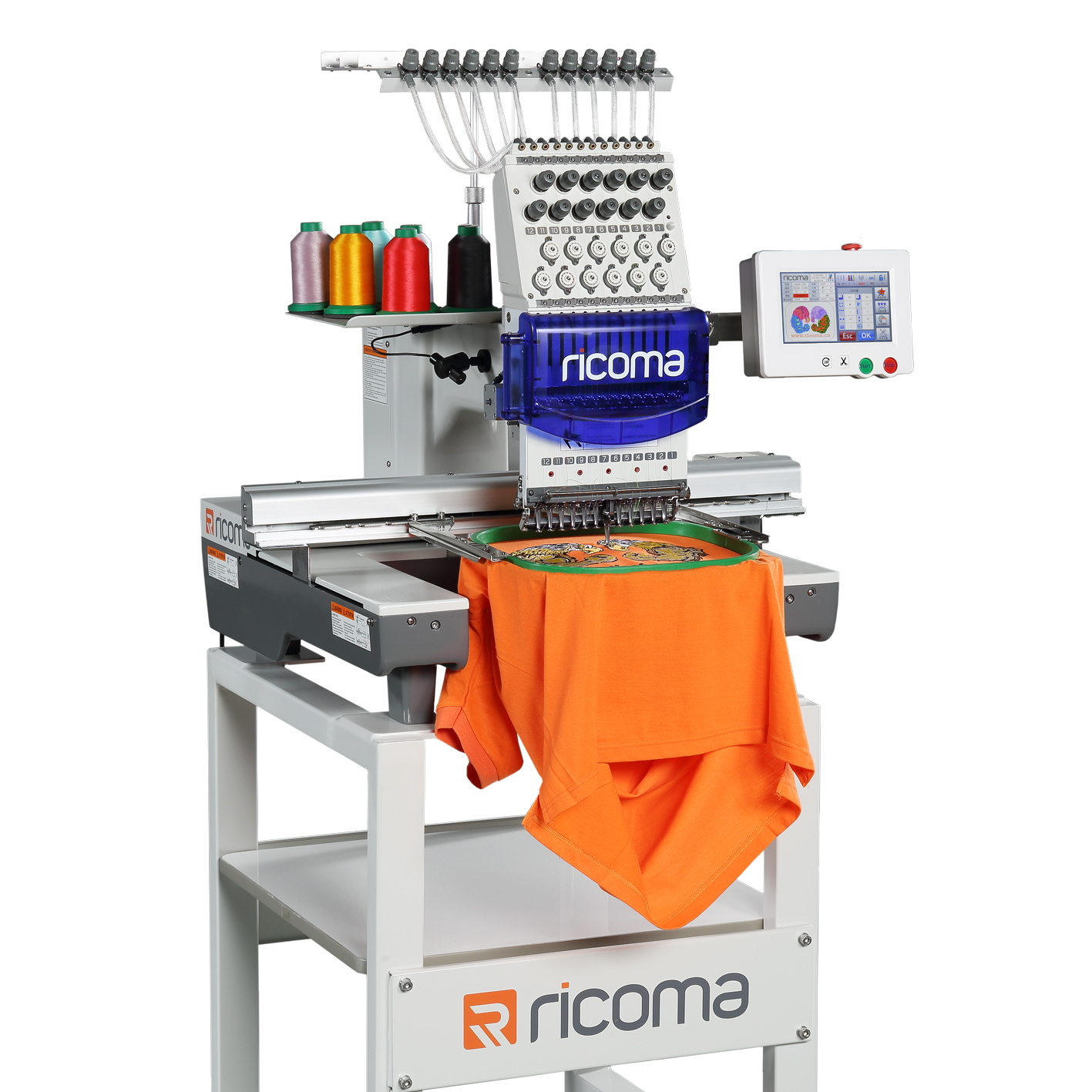

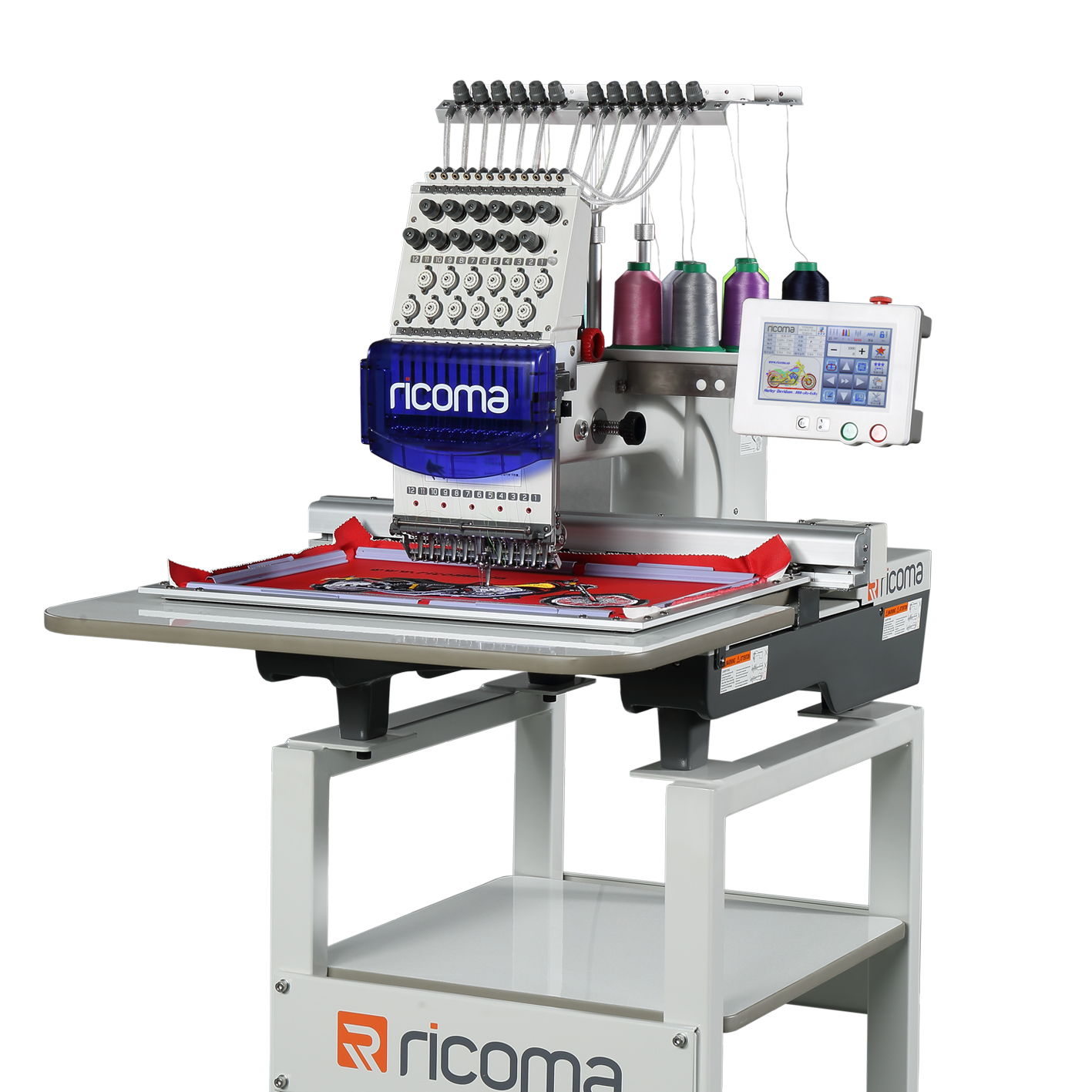

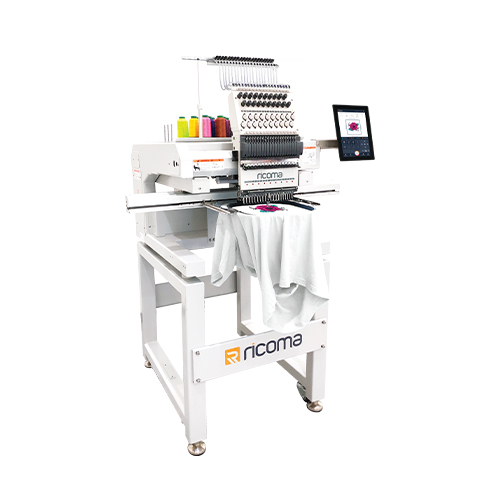

TC-7S SERIES

The TC-7S Series is perfect for embroidery on caps, bags, denim, finished garments and plenty more!

Specifications
  • Models::

    SWD-1501-8S / SWD-1201-8S

  • Needles::

    15 / 12

  • Heads::

    1

  • Net weight::

    185 kilograms [408 lbs]

  • Gross weight::

    230 kilograms [507 lbs]

  • EMB. area::

    800mm x 500mm [ 32” x 20” ]

  • Size:

    L: 1,035mm W: 920mm H: 1,600mm
    L: 40” W: 36” H: 63”

Features


• Suitable for embroidery on flats, caps, fnished
garments and more
• Perfect for startups or home businesses
• High defnition true color 7-inch LCD touch screen
• Maximum embroidery area: 560 mm x 360 mm, or
22”x 14”
• Lightweight – only 90 kgs (200 lbs) for easy
maneuverability
• Heavy duty steel stand with wheels to ensure
stability and mobility
• Maximum speed: 1,200 stitches per minute
• Memory capacity: 20 million stitches or 200 designs
• Machine reads multiple design formats, such as
DST, DSB and more
• 270° wide angle cap system
• USB input or direct transmission from PC via LAN
port or wireless

• Environmentally friendly packaging
• Networkable and Wi-Fi capable
• Servo motor 150 W – lowest power consumption
in the industry!
• Built-in universal power supply 110V/60Hz and
200V/50Hz (self-adaptable worldwide)
• DC36V micro-step motor for X & Y axis driving to
ensure low noise and less vibration
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB flash drive
• Optional laser tracing device available
• Multiple hoop sizes for a variety of embroidery
needs
• Automatic memory retention

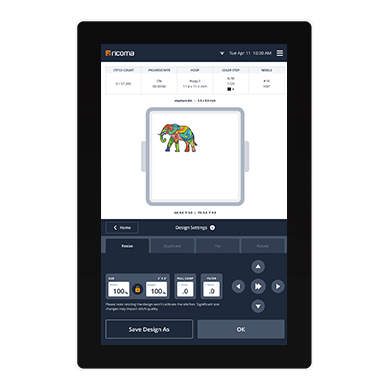

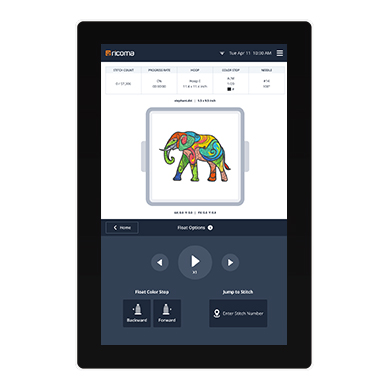

Display

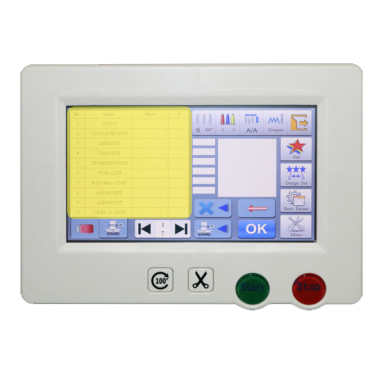

Preset hoops

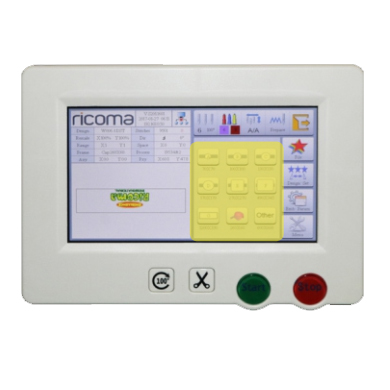

One-step appliqué
Easy design input
On-board lettering

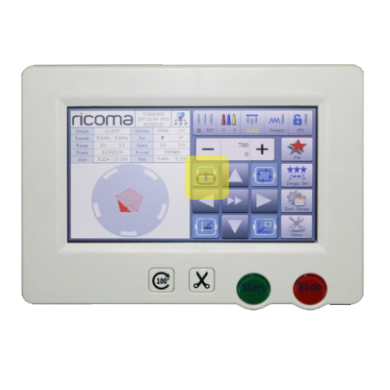

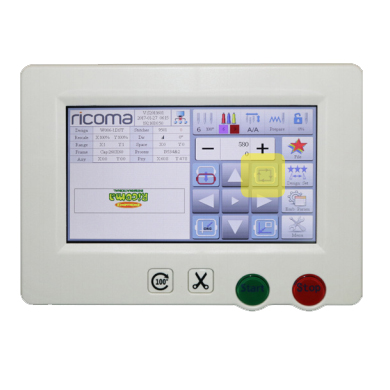

One-step tracing
Easy design ion


• User-friendly interface
• Easy to operate
• New ergonomic touch screen allows easy and
comfortable operation by right-hand thumb
• Preset hoop parameters designed to avoid hitting
hoops
• Multi-angle, rotatable and adjustable control panel
bracket allows for better visibility
• Pre-sew design trace capable

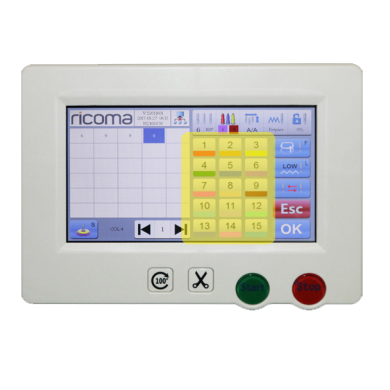

• Automatic color change

• Built-in button from 172° to 196° under manual
color change mode, a great help for machine
maintenance
• Frame offset and frame outlining available for easy
appliqué embroidery
• One-step tracing key directly on the main screen
• External 100° button and trimming button
• Multiple languages: English, Chinese, Spanish,
Portuguese, Turkish, Dutch, French, German,
Russian, Vietnamese, Thai, Arabic and more

Hoops and cap attachment
Cap ring
(x2) Cap rings snap into hoop station to prepare machine for cap embroidery
Hoop station
(x1) Hoop station provides stability for fast and easy cap hooping
Cap driver
(x1) Cap driver snaps into embroidery machine’s bracket holder for hoops
(x2)
90 mm round (9 cm, 3.5”)
(x2)
120 mm round (12 cm, 4.7”)
(x2)
150 mm round (15 cm, 5.9”)
(x2)
200 mm round (20 cm, 9”)
(x2)
290 mm square (29 cm, 12”)
(x1)
540 x 350 mm oval (54 x 35 cm, 21 x 14”)
Optional accessories

Sequin device

Boring device

Cording device

8-in-1 device

Robot frame

Mighty hoop

Camera positioning device

Belt hoop

Laser device

Highlights

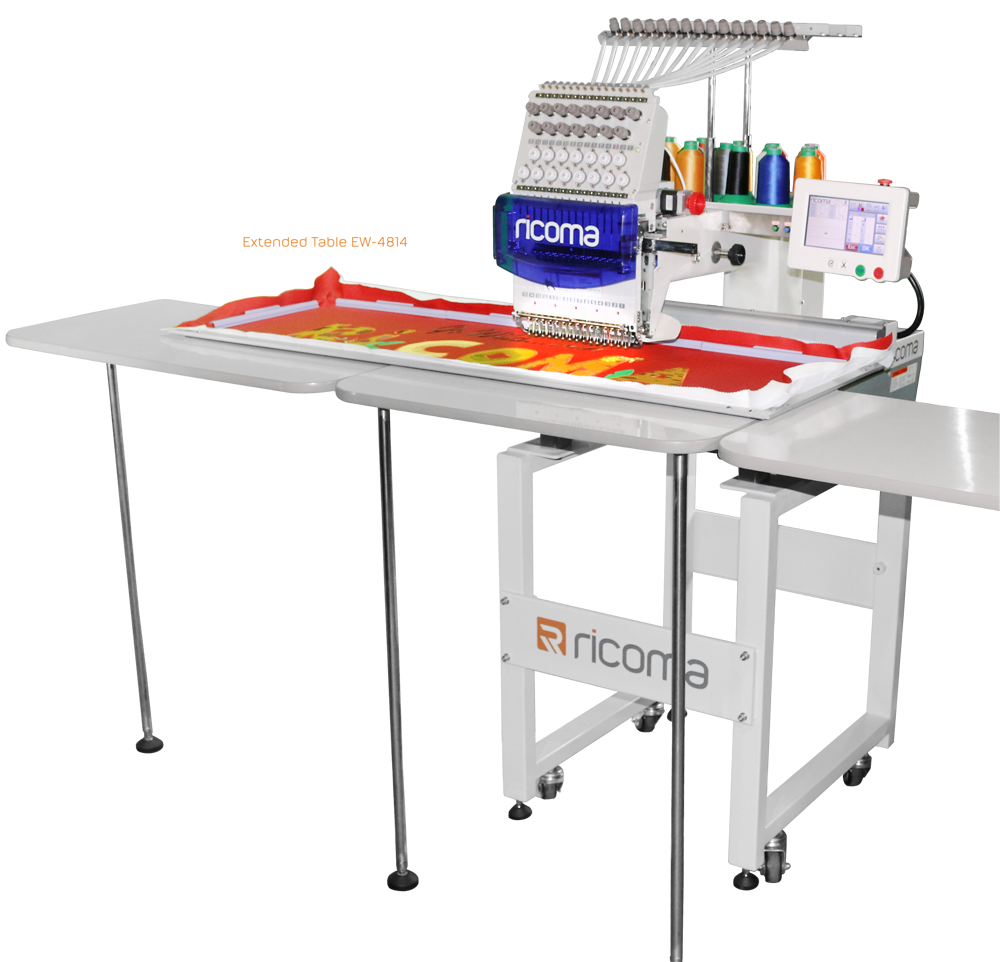

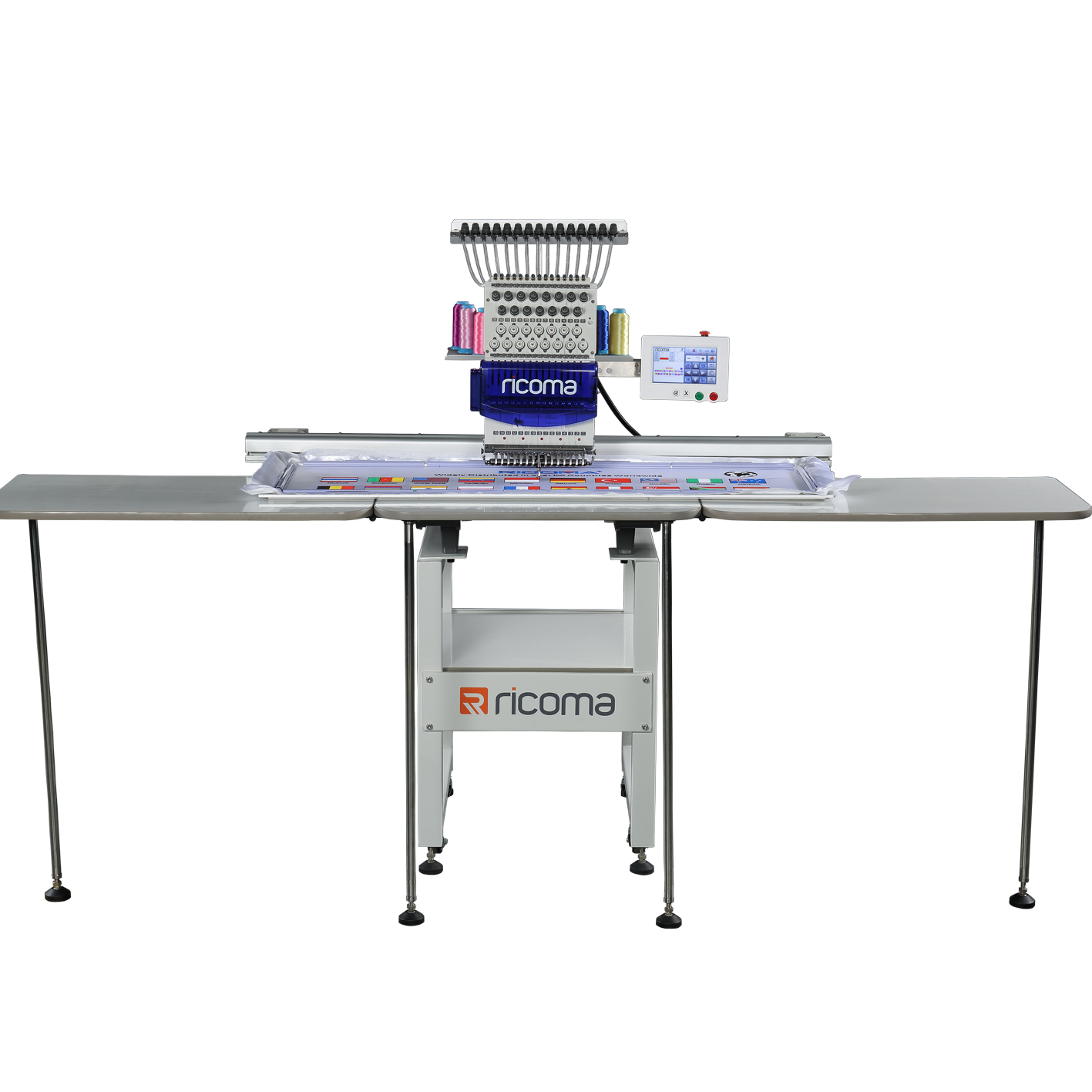

OPTIONAL EXTENDED EMBROIDERY AREA

The extended table is the perfect aide for embroidery on oversized items such as drapery, blankets,

banners, mattress borders, wedding dresses, quilt covers and much more.

EW-4814 Extra large embroidery area 120 x 35 cm (48” x 14”) and Sash Frame

EW-2214 Extended tabletop 56 x 35 cm (22” x 14”) and Sash Frame

NETWORK
CAPABILITY READY

Using advanced network technology,users can link together as many Ricoma TC-7S Series as desired to an extremely flexible production system.Embroider the same design on all of your machines at the same time or embroider different designs on individual machines
simultaneously.
